Arisaka Offset Scout Mount

Brand : Arisaka https://nelsonuniform.com/web/image/product.template/31318/image_1920?unique=fd82ed1
(0 review)

48.00 48.0 USD 48.00

48.00

Not Available For Sale

  • Attachment

This combination does not exist.

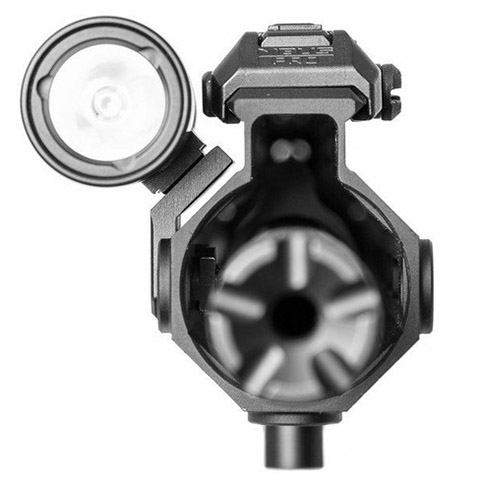

The Arisaka Offset Scout Mount places your light at a 45 degree angle and tucks it in closer to the rail system. Oriented upwards, the light is located at approximately the 1:30 or 10:30 clock positions. Oriented downwards, the light is located at approximately the 4:30 or 6:30 clock positions. The Offset Scout Mount is very low profile at less than 0.20" thick.




The Offset Scout Mount also provides three lateral mounting positions for the light body, which allows the user to position the light closer or farther away from the top rail, front sights, or other accessories. Three positions are provided, spanning approximately 0.240". When used with the Arisaka 300 Series Light Body or 600 Series Light Body, even more clearance can be gained for larger front sights.


The mount works with the Surefire Scout Light M600 and M300 series weapon lights, the Modlite PLH and OKW weapon lights, the Arisaka 300, 600 and 18650 Series Lights, the Streamlight Protac Rail Mount 1, 2, and HL-X (non-laser), and Olight Odin. It replaces the Picatinny rail adapter that comes with these lights with a low profile mount.


Length

1.265"


Weight

0.4 oz


The mount is CNC machined from 6061-T651 aluminum and MIL-A-8625 Type III hard coat anodized. Includes necessary screws to attach light body to mount. Requires an IP20 TorxPlus driver for installation (not included). A T9 Torx driver is required to remove the stock Picatinny mount from Surefire Scout Lights. Recommended torque: 30 inch lbs for M-Lok screws and 20 inch lbs for light body screws with Loctite 222 or 243.


Hardware Included

Two M-Lok nuts

Two 10-24x5/16" Torx button head screws

Two 8-32x3/8" Torx flat head screws.


Made in the USA.
